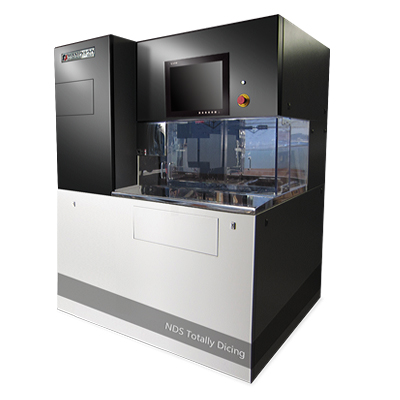

Automatic Dicing Saw – NANO 321
- Function- In-line dressing during dicing
- To eliminate operating time
- To reduce the dicing cost
- To increase productivity
![NDS, NDS 台灣日脈, NDS Immersion Cooling System, NDS Dicing Service Center Taiwan, Totally Dicing, Dicing Saw, Automatic Dicing Saw, NDS Dicing System, Dicing Tape, Dicing Blades, Grinding Wheel, Dicing Accessories, Auxiliary Machines, Dicing Fluids, Wafer Cleaner, Dressing Board, Chuck Table, Wafer Mounter, New Metal Bond Blade for dicing system-in-package (SiP), Metal Bond Blade, system-in-package, Polishing Pad, Polishing Template, Wafer Ring, Wafer Coin Box, Green, cleaning, coating, heat dissipation, 清洗, 焊接, 冷卻, 散熱, 塗佈, Coolant, Cleaning, Cooling, Soldering, Coating, Chiller, 切磋琢磨, Dicing, Lapping, Polishing, Grinding, 台灣半導體展, 半導體展, 半導體, 切SiP金屬刀, 系統級封裝, 金屬刀, SiP, New Metal Bond Blade for dicing system-in-package (SiP), Metal Bond Blade, system-in-package](images/320-in-line-s.jpg)
- Specifications
Item |
Descriptions |
Unit |
NANO 321 |
Workpiece size |
|
|
Max.φ12"
Max. 320 mm square (*) |
X-axis |
Cutting rang |
mm |
320 |
Max. cutting speed |
mm/s |
0.1~600 |
Y-axis |
Cutting rang |
mm |
320 |
Index step |
mm |
0.00005 |
Positioning accuracy |
mm |
0.003 or less /320 |
Z-axis |
Max. stroke |
mm |
32.2 |
Moving resolution |
mm |
0.00005 |
Repeatability accuracy |
mm |
0.001 |
Max. blade size (*2) |
mm |
Φ60 |
θ-axis |
Max. rotating angle |
deg. |
360 |
Spindle |
Output |
kW |
1.8 at 60,000 minˉ¹ |
Rated torque |
N・m |
0.35 |
Revolution speed range |
minˉ¹ |
6,000~60,000 |
Applicable tape frame |
2-12-1 |
Utilities |
Machine dimensions |
mm |
1290 x 1180 x 1800 |
Machine weight |
kg |
Approx. 1,200 |
*1. A special jig is required.
- Environmental conditions
- Keep room temperature fluctuations within ±1 °C of the set value. (Set value should be between 20 - 25°C).
- Keep cutting water 2 °C above room temperature (fluctuations within ±1 °C).
- Keep spindle cooling water the same as room temperature between 20 - 25 °C (fluctuations within ±1°C).
- Use clean, oil-free air at a dew point of -15 °C or less. (Use a residual oil: 0.1 ppm. Filtration rating: 0.01 µm/99.5 % or more).
- The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, heat generation equipment or oil mist generating parts.
- This machine uses water. In case of water leakage, please install the machine on the floor with sufficient waterproofing and drainage treatments.
